Posted to rec.audio.pro
|
|||
|
|||
Schoeps Blue Dot Sensitivity CMC5

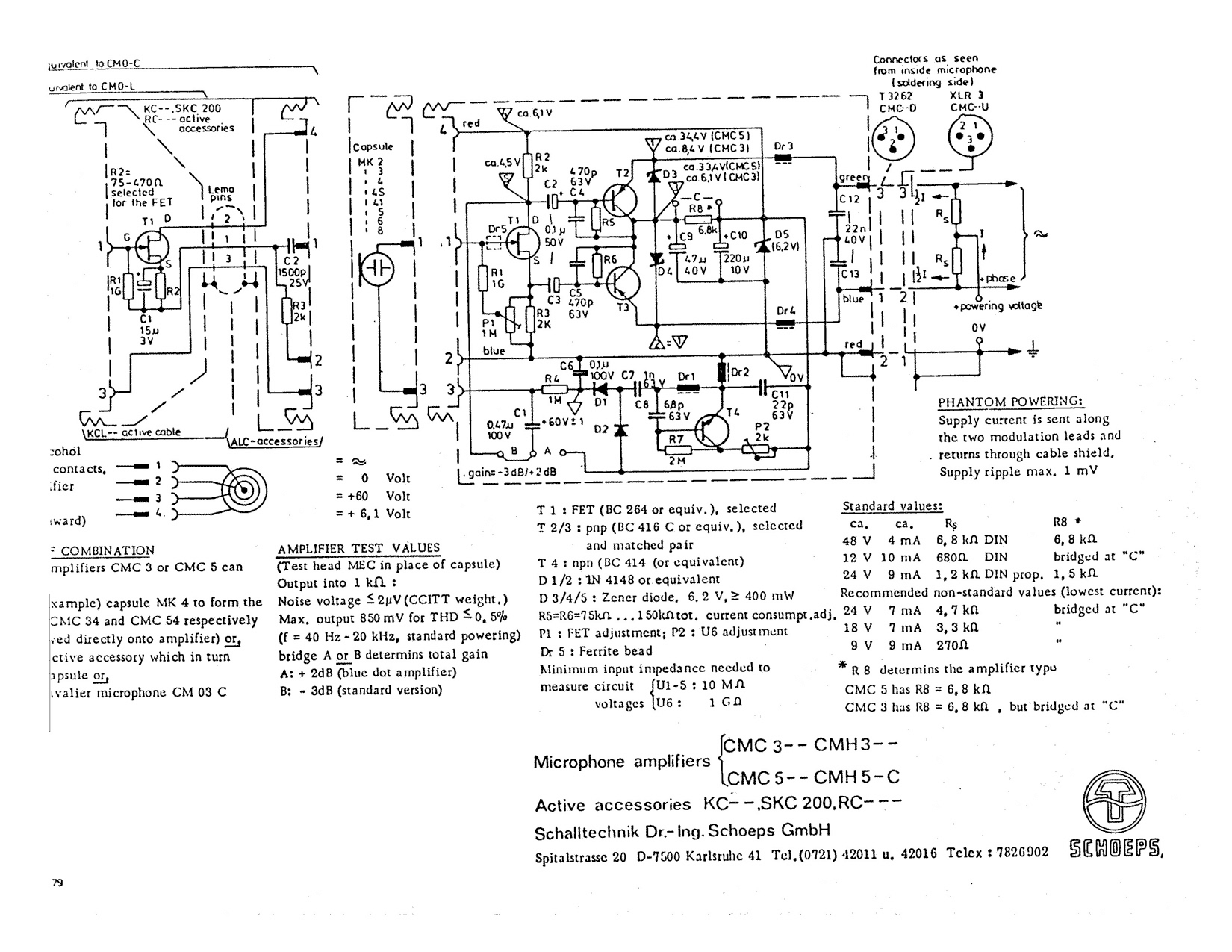

http://www.sdiy.org/oid/mics/Schoeps.gif
So it's a cathodyne-style phase inverter realized with a jfet. Are they just dumping one phase to AC ground to get a sensitivity reduction? I don't get the connection coming off the DC-DC converter going back to the jfet's drain. Can anyone shed some light? Thanks, Sean B |
